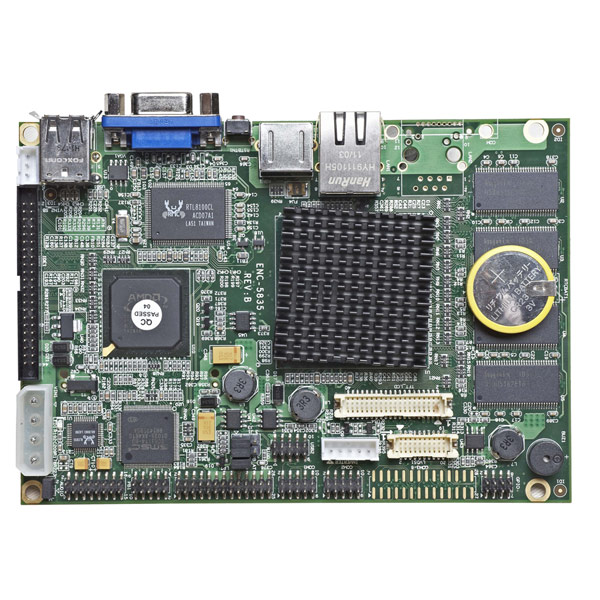

Product Name:ENC-5835
Description:A Reliable, Low Power and Cost Effective AMD LX-800 Solution

Features:

Onboard AMD® Geode LX800-500MHz low power fanless CPU
Onboard 512MB DDRI memory
Support 2 x 100M Base-T Ethernet
Support 24-bit TTL and 1 channel LVDS LCD display
Support 4 x USB 2.0 ports
Support 6 x COM Ports
Processor System CPU             AMD® Geode LX800-500MHz
CPU SocketOnboard
FSB100Mhz
Chipset         AMD® Geode CS5536AD

System Memory Technology      Onboard 256M DDR
Max.Capacity    256/512MB DDR
SocketN/A
Display Graphic Controller     Onboard AMD® Geode LX800
LCDSupport 9/24 bit (1ppc) and 18-24bit (2ppc) TFT panel
 Resolution: 320 * 240 to 1600 * 1200 @ 24 bpp (60 Hz)
LVDS                    Support one channel 18-bit LVDS
 Resolution: Up to 1024 * 768
DVI                     N/A
 N/A
HDMIN/A
 N/A
VGADB-15 CRT Port
 Resolution: Up to 1600 * 1200
Dual Display    CRT + LCD, CRT + LVDS
Ethernet Controller      LAN1:10/100Mbps- RTL8100CL
 LAN2:10/100Mbps- RTL8100CL
AudioController      Realtek ACL655 support AC97 audio stereo sound
Super I/OController      SMSC-3114/3116(optional)
H/W Monitor Watchdog Timer  Programmable 1 ~ 255 sec.; Support System Reset
Smart fan       N/A
TPMController      N/A
I/O Interface USB            4 * USB 2.0 compliant universal serial bus ports
Serial         Six serial ports, 6 ports for RS-232
Parallel        One internal pin header, support SPP/EPP mode
PS/21
GPIOGeneral purpose 3 channel Input and 3 channel Output
IEEE 1394N/A
Expansion Slot PCIeX16        N/A
PCIeX4N/A
PCIeX1N/A
PC104N/A
PCIN/A
Mini-PCIeN/A
Storage SATA            N/A
IDE             1 * one channels support up to two EIDE devices
SSDN/A
eSATA            N/A
Compactflash    N/A
Power   Source Power      DC-in +5V (Optional ATX Type)
Power Consumption +5V @ 2.1A
 Typical Consumption:10W
Environment Operating Temperature-20°C ~ 70°C
Storage Temperature-40°C ~ 85°C
Operating Humidity0% ~ 90% relative humidity,non-condensing
Storage Humidity0% ~ 90% relative humidity,non-condensing
Form Factor Dimensions              102mm * 145mm
Weight0.148kg
Regulatory Compliance FCC, CE, RoHS compliant
Model NameDescription
ENC-5835VEA-2S/256MAMD LX800-500MHz with 256M DDRI,VGA/LCD, 2*COM,1*LAN, 3.5" SBC
ENC-5835VEA-2S/512MAMD LX800-500MHz with 512M DDRI,VGA/LCD, 2*COM,1*LAN, 3.5" SBC
Optional peripherals18bit  LVDS, 2*LAN, 4*COM or 6*COM
