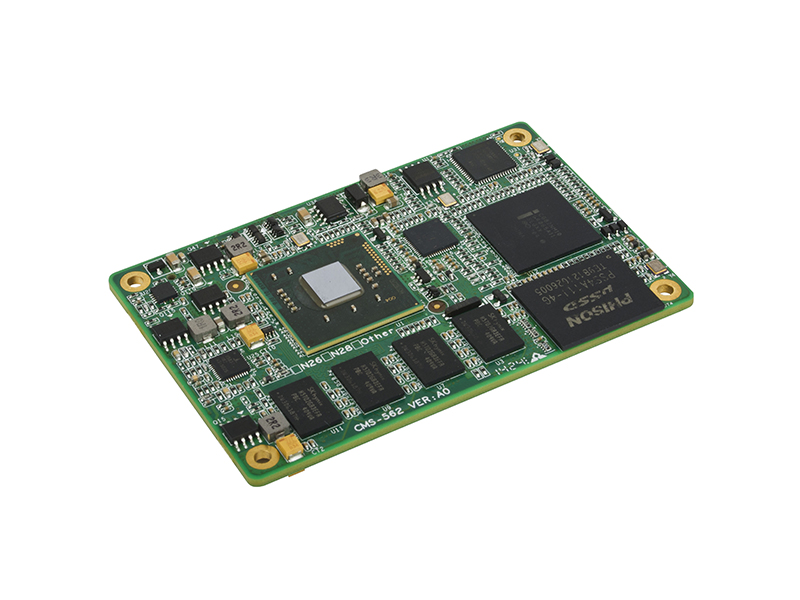

Product Name:CMS-562
Description:Intel® Atom™low power, high performance, rigorous reliability, Type10 Mini Com Express Module


Intel® Atom™ Cedar Trail processor N2600(Dual Core)
Onboard 4GB DDR3 memory
Intel® 3600 series graphic media accelerator
8 * USB, 2 * TTL COM
1 * Intel® 82583V GbE Lan
DC 5-12V input
FCC, CE, RoHS compliant
COM-Express Mini Module,  84 x 55 mm
ProcessorCPU             Intel® Atom N2600 -1.6GHz (Dual Core)
CPU PackageOnboard
FSBDMI x 2  5Gb/s
RAMTech ArchitectureSingle Channel DDR3 1066 MT/s
CapacityOnboard 4GB DDR3
DisplayGraphic ControllerIntel® GMA3600 400MHz, supports DX9,
and MPEG2, AVC/H.264, VC-1 HW decode/acceleration
LVDSSupport single channel 18bit output, Max. resolution:1366 x 768
Display Interface1-line DDI output, can be configured as HDMI, DVI, or DP
Resolution: HDMI/DVI up to 1920 x 1200
                 DP up to 1600 x 1200
Dual DisplayLVDS + HDMI/DVI/DP
LANControllerLAN1: Intel® 82583V GbE
AudioControllerIntel HD Audio interface
Super I/OControllerSMSC3114
H/W MonitorWatch Dog Timer0-255 sec., provide watch dog timer routine
CoolerAluminum heat-sink
I/OUSB            8*USB2.0 / 1.1 compatible
Serial Port2*TTL
Parallel PortN/A
GPIO8bit, provide routine, freely define I/O,3.3V@24mA level
Expansion BusPCI Express x1:3 ports,PCI Express 1.0a compliant
StorageSATA            1
SSD Onboard 4GB MLC SATA SSD(Optional 8G/16G)
PowerPower TypeATX or DC5-12V
Power ConsumptionTypical Power: 8W
EnvironmentWorking Temp.-20°C ~ 70°C
Storage Temp.-40°C ~ 80°C
Working Humidity0% ~ 90% relative humidity, non-condensing
Storage Humidity0% ~ 90% relative humidity, non-condensing
FormfactorDimensionsPICMG COME  R2.1 Type 10, Mini Module 84 x 55 mm
Certifications FCC, CE, RoHS
CMS-562Type10 Mini Com Express Module  Intel N2600 1.6G CPU,4GB DDR3 RAM,4GB SATA SSD,
Single channel LVDS,2*TTL COM,1*LAN,8*USB
